XRD, TGA and TMA Charts (No.116)
| No. | Name | Sampling date | Vein or deposit | Mining place | Mining company | Sampling place | Grade or sort |
|---|---|---|---|---|---|---|---|
| 116 | KRT__09A | November 13,1982 | Tomioka D. | Tomioka | Kiyama Tohseki | Cliff near the stock yard of octopus trap | Soft rock |
| Colors of the milled samples | |||||||
|---|---|---|---|---|---|---|---|
| X | Y | Z | Whiteness (Hunter) | L | a | b | Whiteness (Lab) |
| 78.54 | 79.13 | 82.13 | 69.60 | 88.96 | 1.93 | 7.53 | 86.50 |
| Chemical compositions (wt%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| SiO2 | Al2O3 | Fe2O3 | TiO2 | CaO | MgO | Na2O | K2O | Ig.loss |
| 73.67 | 15.41 | 0.60 | 0.05 | 0.32 | 0.30 | 3.02 | 4.53 | 1.72 |

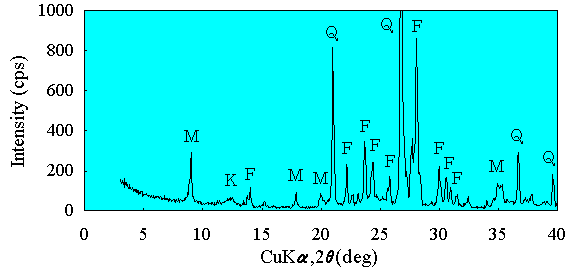

| Mineral compositions (wt%) | |||||
|---|---|---|---|---|---|
| Q : Quartz | M : Sericite | K : Kaolin mineral | F : Feldspar | C : Calcite | S : Siderite |
| 30.63 | 50.13 | 2.01 | 17.00 | 0.00 | 0.23 |

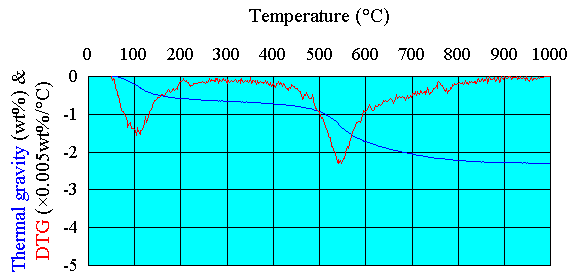

| Results of TGA and Colors of the Powder Samples after Measuring | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
The conditions for TGA were sample weight : about 180mg, heating rate : 20°C/min, ended temperature : 1000°C.
LT : Total weight loss, L400 : Weight loss of 400-1000°C. LT (wt%) | L400 (wt%) | X | Y | Z | Whiteness (Hunter) | L | a | b | Whiteness (Lab)
| 2.30 | 1.58 | 73.65 | 73.26 | 71.00 | 60.17 | 85.59 | 3.81 | 10.73 | 81.63
| | |||||||||

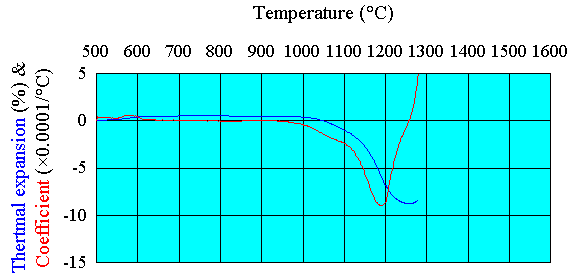

| Results of TMA and Colors of the Sintered Samples after Measuring | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
The conditions for TMA were compaction pressure : 250MPa, pellet diameter : 10mm, thickness : about 3mm, heating rate : 10°C/min, loading : 10g.
W10 : Contents of particles larger than 10µm, SMax : Maximum shrinkage, T0 : Temperature at the maximum shrinkage, T5 : Temperature at the expansion coefficient becomes 0.0005/°C, TS5 : Temperature rectified using the correlative equation, TSK : Nominal temperature equivalent to its SK. W10 | (wt%) SMax | (%) T0 | (°C) T5 | (°C) TS5 | (°C) TSK | (°C) SK | X | Y | Z | W | (Hunter) L | a | b | W | (Lab) 46.3 | 8.75 | 1261 | 1280 | 1275 | 1415 | 14+ | 52.00 | 52.73 | 50.64 | 42.92 | 72.62 | 0.75 | 9.48 | 71.01
| | ||||||||||||||
